Avocor E92 Series

92” | Ultra-wide 21:9 Aspect Ratio

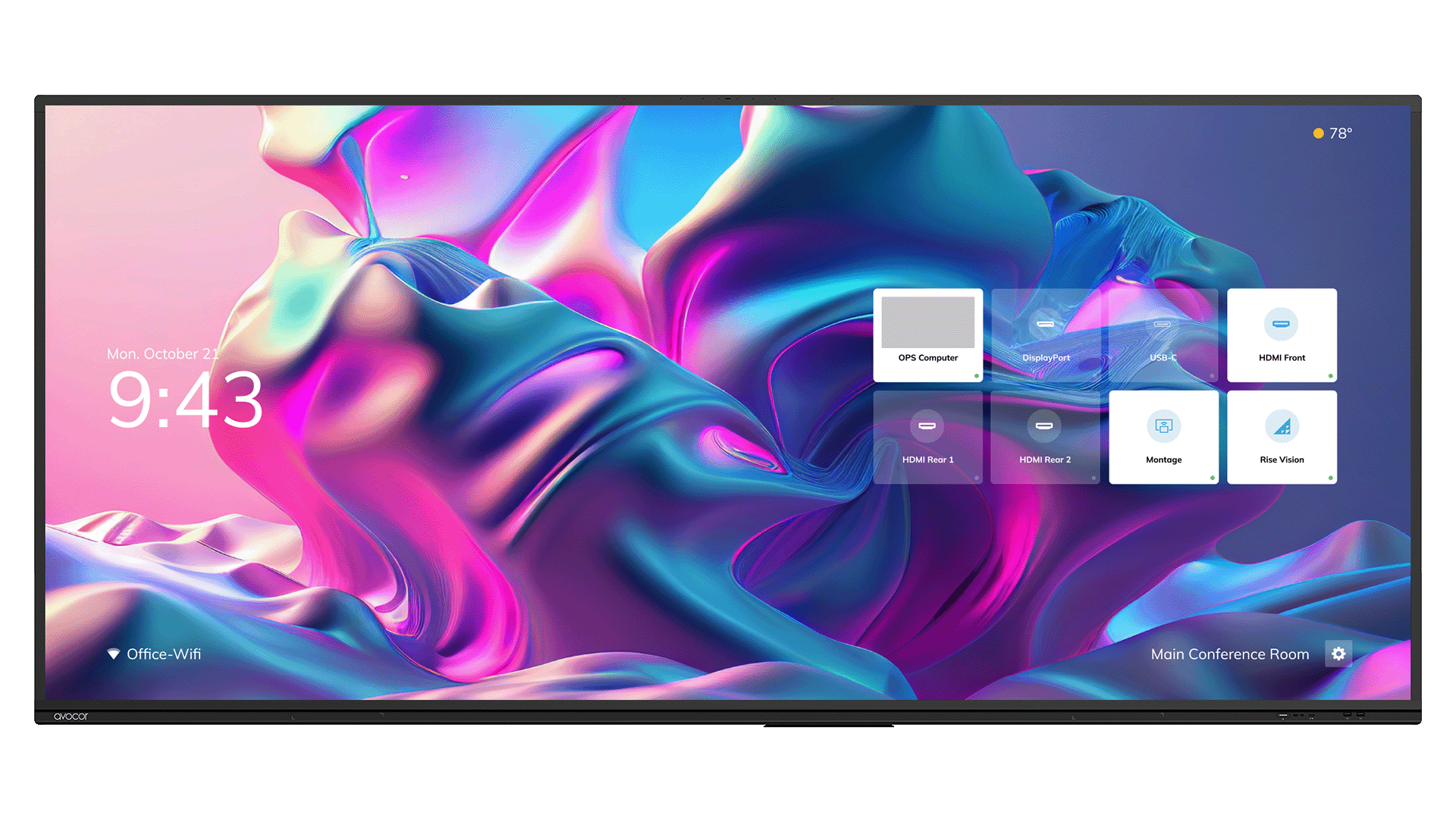

Avocor A Series Display

OVERVIEW

Enhance your workspace collaboration with the Avocor E92, featuring a 92-inch ultra-wide display that delivers unparalleled visual clarity and interactive capacity. Designed to streamline complex setups, this interactive display replaces cumbersome dual-monitor configurations, offering a single, cohesive solution for various meeting scenarios.



Fully optimized for platforms like Microsoft Teams and Zoom, the E92 facilitates a more connected and engaging ‘front row’ experience, bringing remote participants right into the meeting room. Its high-resolution and expansive aspect ratio ensure that all content and participants are visible, making meetings more productive and inclusive.



With comprehensive connectivity options including high-speed HDMI and USB-C, along with advanced touch technology, the E92 seamlessly integrates into any IT infrastructure. Ideal for dynamic, hybrid work environments, the Avocor E92 is a key tool for organizations looking to enhance interaction and streamline communication in today’s digital landscape.

Buy It With Upgrade your solution with: www.avocor.com
  • Accessory Icon 3 Year Warranty
  • Accessory Icon Avocor Mobile Stand

SPECIFICATIONS

Display

Part Number
AVE-9200
Size
92"
Backlight
Direct-lit LED
Aspect Ratio
21:9
Resolution
5120 x 2160 @ 60Hz
Response Time
6.5ms (Typ
Brightness
450 (cd/m2)
Contrast Ratio
4000:1
Viewing Angle
178° / 178°
Supported Colors
1.07B (8 bit + FRC)
Operation Time
7 days x 16 hours
Display Orientation
Landscape

Touch System

Interface
2 x USB-B 2.0, 1 x Type-C
Touch
Up to 50 point IR + 1 stylus
Glass
Zero parallax, zero-bond, anti-glare, anti-fingerprint glass
Supported Operating System
Windows 7 / 8 / 10 / 11 WindowsXP / Linux / Mac / Android

CPU

CPU
Rockchip RK3588 A76 x 4 + A55 x 4
GPU
Mali-G610 MP4
RAM / ROM
8GB / 64GB
Android Version
Android 13

Connectivity

Front Inputs / Guest Inputs
1 x Type-C (15W PD), 2 x USB-A 3.0
Top Inputs
2 x USB-A 3.0
Side IO
1 x Type-C (100W), 1 x DP 1.4, 3 x HDMI 2.0, HDCP 2.3, 3 x USB-B 2.0, USB-A 3.0, 1 x HDMI 2.0 out
Audio
1 x 3.5mm Aux + 1 x Optical (SPDIF)
Control
1 x RS-232, 2 x RJ45
OPS Slot
Yes
WiFi
Yes

Audio

Built-in Speakers
2 x 20W + 20W sub
Microphone Array
None
Camera
None

Display & Remote Functions

Auto-Source Detection
Yes
Image Settings
Yes, UiQ

Physical Specifications

Product Dimensions (L x W x H)
2203 x 92 x 1000mm (86.7 x 3.6 x 39.4")
Bezel Dimensions
Top: 29mm, Sides: 18mm, Bottom 39mm (Top: 1.14", Sides: 0.7", Bottom: 1.5")
Shipping Dimensions (L x W x H)
2360 x 225 x 1140mm (92.9 x 8.8 x 44.8")
Weight (Net)
67.6KG (149lbs)
Weight (Gross)
88.5KG (195lbs)
Wall Mount (VESA)
800 x 600mm
IPC Mount
None
Handles
2

Power

Power Supply
AC IN 100 - 240V~50 / 60Hz
AC Power Out
AC Out 100 - 240V~50 / 60Hz
Max Power Consumption
250W (w/o OPS)
Standby
≤0.5W

Environmental

Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Humidity
10% - 90%

What Comes In The Box

In The Box
1 x Remote control & batteries, 2 x 3mm fine-tip passive touch styluses, AC power cords (1 x UK, 1 x EU, 1 x US, 1 x AUS), 1 x USB-B 3.0 cable (3m | 118.1"), 1 x HDMI cable (3m | 118.1"), 1 x Type-C cable (1.8m | 70.9"), Wall Mount, WiFi module included
Details are subject to change without notice. All other logos and trademarks acknowledged. E&OE.
