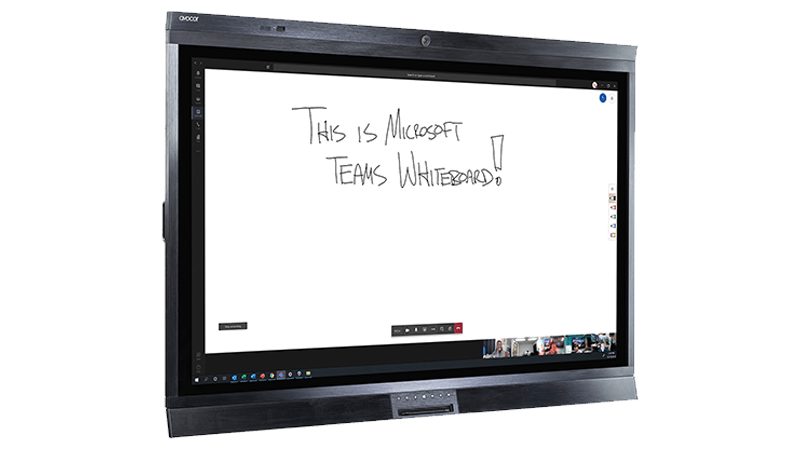

WCD by Avocor

Technical Specifications

W series
DISPLAY
Diagonal size (inch) 65"
Backlight Direct-lit LED
Aspect ratio 16:9
Resolution 4K, 3840 x 2160 @ 60Hz
Response time 8 ms
Brightness 370 (cd/m2)
Contrast ratio 4000:1
Viewing angle 178°/178
Supported colors 30-bit deep color
Display orientation Landscape
TOUCH SYSTEM
Interface 1 x USB Type C, 3 x USB-B 3.0
Touch Up to 20-point InGlass™ Intelligent Touch | Support up to 4 x fine-tip stylus with eraser | Simultaneous pen and touch*
Glass 2mm optically bonded, anti-glare, anti-fingerprint glass
Supported operating system Windows 7/8/10 | Mac OSX | Linux
AUDIO
Built in speakers 2 x 30W Stereo Full Range
Microphone array 4 x beam-forming, linear array, far-field, SSP, AEC, ANS, DRC, EQ
CAMERA
Integrated conference camera Integrated conference camera 6 element aspherical glass lens, Full HD Sony CMOS, AE, AWB, AF, AGC, WDR, super-wide 120° FoV
CONNECTIVITY
Standard I/O 1 x Type-C (DisplayPort Alt mode, 4K@60Hz, USB HID, Power Delivery, Ethernet), 1 x DisplayPort, 1.2, 2 x HDMI 2.0, 3 x USB-B 3.0, 1 x USB-A 3.0, 1 x USB-A Service Port, 1 x LAN In Ethernet (RJ-45), 1 x LAN Out Ethernet (RJ-45)
Audio 1 x 3.5mm audio out, 1 x optical (SPDIF)
Control 1 x RS-232, 1 x IR input
PHYSICAL SPECIFICATIONS
Product dimensions 1586(W) x 1039.1(H) x 111.5(D) mm |62.5(W) x 40.9(H) x 4.4(D) in
Shipping dimensions 1695(W) x 1237(H) x 520(D) mm | 66.81(W) x 48.70(H) x 20.47(D) in
Weight Net: 49kg / 108.02lbs | Gross: 69.5kg / 153.22 lbs
VESA wall mounting points 600 mm x 400 mm | 23.62 in x 15.75 in
IPC mount 75 x 75 mm | 2.95 x 2.95 in
Handles 2
AZURE DIGITAL TWINS DATA
Ambient room temperature Min -5 ~ Max 45°C | Min 23 ~ Max 113°F
Room brightness 0 ~ 3000 Lux
Proximity 3.5M Max
WCD FUNCTIONS
Auto-power detection Yes, based on Proximity Sensor
Auto-source detection Yes + Smart Switching
IOT data reporting Yes + adjustable data telemetry interval
POWER
Power supply AC100-240V (Worldwide), 50/60Hz
Maximum power consumption <220W
Standby ≦0.5W
ENVIRONMENTAL
Operating temperature 0°C ~ 40°C
Storage temperature -20°C ~ 60°C
Humidity 30% ~ 85%
WHAT COMES IN THE BOX
1 x remote control & batteries, 2 x 2mm pen with eraser tip, Power cables (1 x US, 1 x UK, 1 x EU, 1 x Australia/NZ), 1 x USB-B 3.0 cable, 1 x HDMI cable, 1 x Type-C cable, 5 x cable clips, 1 x VESA 75 x 75mm / 100 x 100mm adapter plate, 1 x quick start guide
WARRANTY
Terms and conditions vary via region, please visit www.avocor.com/faq/avocor-global-warranty
