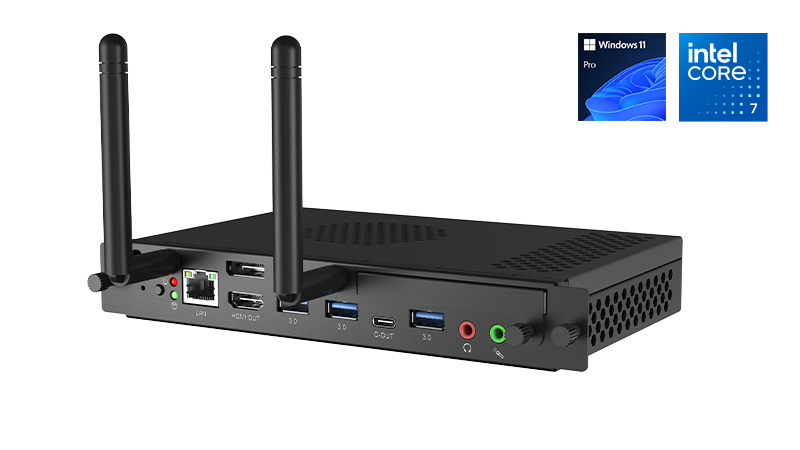

Avocor i7 Gen 13 OPS

Name: i7 Gen 12 OPS
Brand: Avocor
Rating: 5 (2 reviews)

AVC-OPSi7-G13

Dive into the future of interactive displays with Avocor’s state-of-the-art OPS powered by Intel’s 13th Generation Core™ i7 CPU. Crafted meticulously to be the perfect companion for the Avocor L Series 105 21:9 display, this OPS not only promises but also delivers unparalleled performance.

The 13th Generation brings significant enhancements over its predecessor, pushing the boundaries of interactive display potential. With a harmonious blend of high-performance and power-efficient cores, this OPS offers optimal performance for demanding tasks while maintaining energy efficiency.

Book a Demo

13th Gen Intel Core Processor At The Heart

13th Gen Intel i7-13620H deca-core (16 Thread) @ 2.4 GHz (4.9GHz Max Turbo), 24MB Cache ensures powerful processing for demanding applications.

256GB SSD Storage

1 x M.2 2280 NVMe 256GB SSD provides fast access and read/write speeds for your files and applications.

Intel® UHD Graphics

Integrated Intel® UHD Graphics with support for DirectX 12.1, OpenGL 4.6 delivers sharp visuals and enhanced multimedia performance for Avocor 4K (16:9) and 5K (21:9) displays.

Windows 11 Pro

The supported OS is Windows 11 Pro OEM 64-Bit, ensuring up-to-date features and security.

Versatile Connectivity

Multiple ports including 4 x USB 3.0, 1 x USB Type-C, and 1 x HDMI 2.0 out (3840 x 2160 @ 60Hz) 4K ensure easy connection with peripherals.

Easy Integration With OPS Interface

The OPS interface uses a JAE 80-pin connector, and it also supports TPM 2.0 for enhanced security.

Resources

Download Datasheet

Avocor Product Brochure

Avocor Global Warranty

Avocor Product Support

Book a demo

Get in touch

Full Product Specifications

Download Datasheet

Operation Specifications

Part Number

AVC-OPSi7-G13

Processor

13th Gen Intel i7-13620H deca-core (16 Thread) @ 2.4 GHz (4.9GHz Max Turbo), 24MB Cache

Memory

16GB (1x 16GB SODIMM) DDR4-3200

Power Type

DC-IN

Storage

1 x M.2 2280 NVMe 256GB SSD

Graphics

Intel® UHD Graphics Supports DirectX 12.1, OpenGL 4.6

Network

Intel® Ethernet Connection (13) I219-V

TPM

Supports TPM 2.0

Supported Operating System

Windows 11 Pro OEM 64-Bit

Connectivity

Wireless

Intel® Dual Band Wireless - AX200

Front Input / Output Ports

4 x USB 3.0, 1 x USB Type-C, 1 x HDMI 2.0 out (3840 x 2160 @ 60Hz) 4K, 1 x DP 1.4, 1 x LAN RJ45, 1 x 3.5mm Line Out, 1 x 3.5mm Mic In, Power Status LED, SSD Status LED

OPS Interface

JAE 80-pin connector

Audio

Intel® HD Audio Driver for Display Audio

Dual Band

2.4GHz & 5GHz

Physical Specifications

Material

Painted EG Steel Case, Black

Weight (Net)

0.6KG

Product Dimensions

180 x 119 x 30mm

Shipping Dimensions

267 x 192 x 72mm

Power

Power Input

12 - 19V DC IN

Max Power Consumption

80.7W

Standby Power Consumption

2.9W

Environmental

Operating Temperature

-10°C to 45°C

Storage Temperature

-20°C to 60°C

Humidity

10% - 90% RH
