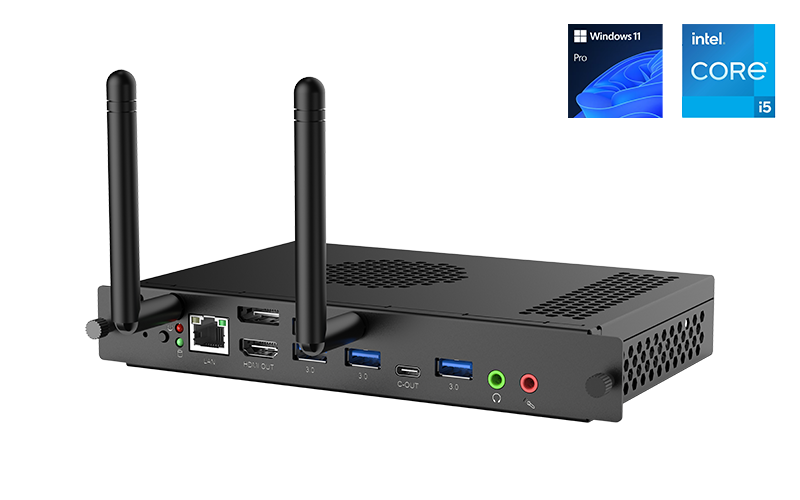

Avocor i5 Gen 12 OPS

Upgrade your Avocor interactive display into a versatile all-in-one collaboration hub with the Avocor i5 Gen 12 OPS PC. Purpose-built for OPS-compatible panels, this plug-in module delivers fast, reliable, and secure
performance - all while keeping your workspace clean and cable-free.

Suitable for hybrid meetings, interactive classrooms, and digital signage deployments, the Avocor i5 Gen 12 OPS PC is ideal for leading collaboration apps including Zoom and Microsoft Teams. Its 12th Gen Intel Core i5 processor and UHD graphics ensure smooth 4K playback, responsive touch performance, and seamless content sharing.

With 8GB of DDR4 RAM and a high-speed 256GB SSD, you’ll benefit from quick boot times and efficient multitasking. Windows 11 Pro comes pre-installed for full enterprise compatibility, while the integrated TPM 2.0 chip supports robust security and IT management requirements.

Compatible with Avocor A, S, E, F, G, H, L, and W Series displays.

Book a Demo
12TH GEN INTEL CORE PROCESSOR AT THE HEART
12th Gen Intel i5-12450H Octa-Core (12 Thread) @ 2.0 GHz (4.4GHz Max Turbo), 12MB Cache ensures powerful processing for demanding applications.
COMPACT & EFFICIENT PROCESSING
With 8GB of DDR4 RAM and a high-speed 256GB SSD, you’ll benefit from quick boot times and efficient multitasking.
256GB SSD STORAGE
1 x M.2 2280 NVMe 256GB SSD provides fast access and read/write speeds for your files and applications.
INTEL UHD Graphics
Integrated Intel® UHD Graphics ensure smooth 4K playback, responsive touch performance, and seamless content sharing.
WINDOWS 11 PRO
Includes Windows 11 Pro OEM 64-Bit, ensuring up-to-date features and security.
VERSATILE CONNECTIVITY
Multiple ports including 4 x USB 3.0 Type A, 1 x USB Type C, and 1 x HDMI 2.0 out (3840 x 2160 @ 60Hz) ensure easy connection with peripherals.
EASY INTEGRATION WITH OPS INTERFACE
The OPS interface uses a JAE 80-pin connector, and it also supports TPM 2.0 for enhanced security.

Optical Specifications

Part Number
AVC-OPSi5-G12
Processor
12th Gen Intel i5-12450H Octa-Core (12 Thread) @ 2.0 GHz (4.4GHz Max Turbo), 12MB Cache
Memory
8GB (1x 8GB SODIMM) DDR4-3200
Upgradable to
32GB RAM
Power Type
DC-IN
Storage
1 x M.2 2280 NVMe 256GB SSD
Graphics
Intel® UHD Graphics Supports DirectX 12.1, OpenGL 4.6
Network
Intel® Ethernet Connection (13) I219-V
TPM
Supports TPM 2.0
Supported Operating System
Windows 11 Pro OEM 64-Bit

Connectivity

Wireless
Intel® Dual Band Wireless - AX200
Front Input / Output Ports
4 x USB 3.0 Type A, 1 x USB 3.2 Type-C, 1 x HDMI 2.0 out (3840 x 2160 @ 60Hz) 4K, 1 x LAN 1000M RJ45, 1 x 3.5mm Line Out, 1 x 3.5mm Mic In, Power Status LED, HDD Status LED
OPS Interface
JAE 80-pin connector
Audio
Intel® HD Audio Driver for Display Audio
Dual Band
2.4GHz & 5GHz

Physical Specifications

Material
Painted EG Steel Case, Black
Weight (Net)
0.6KG
Product Dimensions
180 x 119 x 30mm
Shipping Dimensions
267 x 192 x 72mm

Power

Power Input
12 - 19V DC IN

Environmental

Operating Temperature
-10°C to 45°C
Storage Temperature
-20°C to 60°C
Humidity
10% - 90% RH
