Vivid Visuals, Non-Interactive Excellence.

Premium Clarity and Seamless Connectivity for the Modern Workspace.

Elevating executive communication with non-interactive lineup

AVK-5510 | AVK-6510 | AVK-7510 | AVK-8510 | AVK-9810

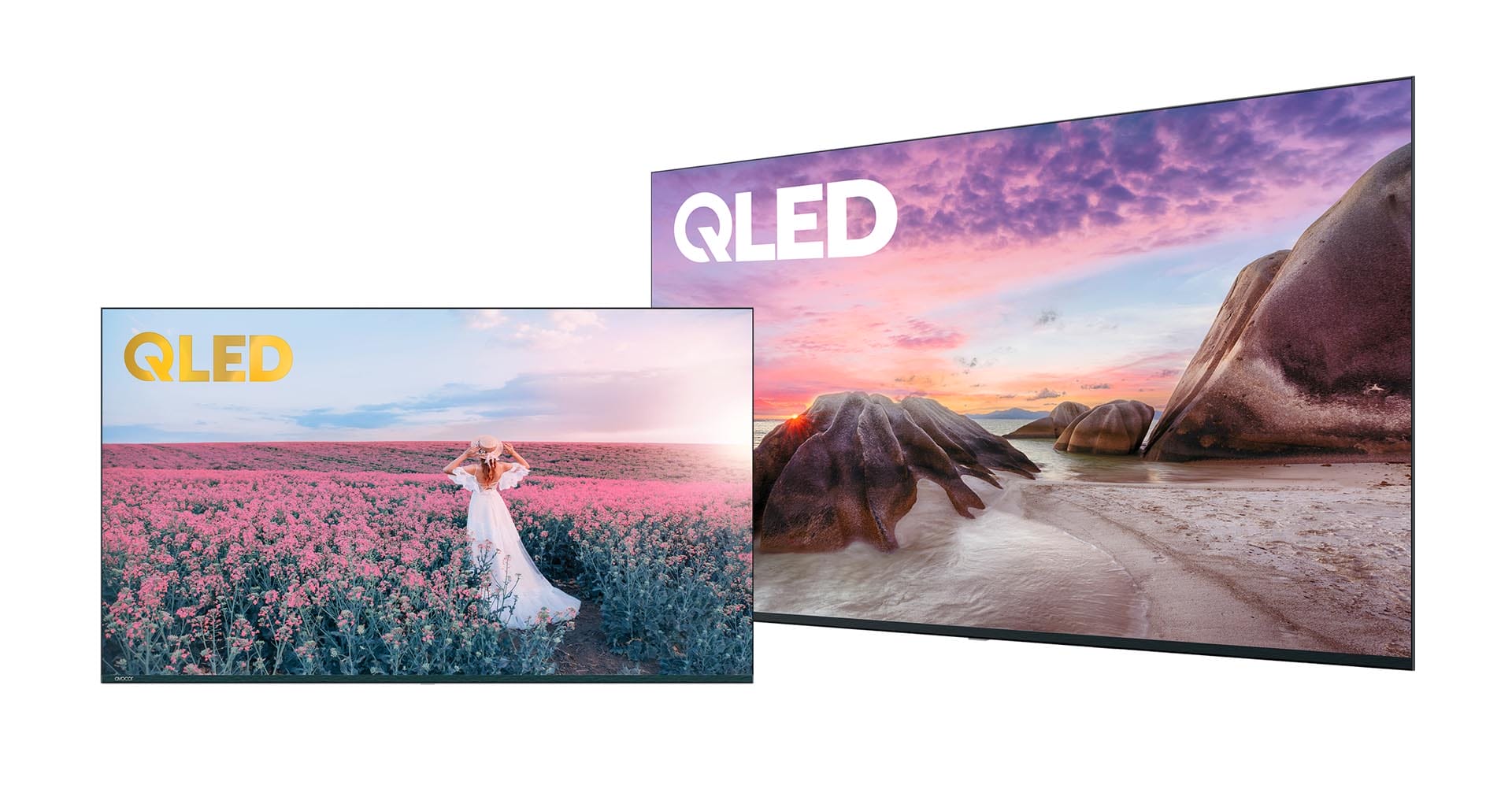

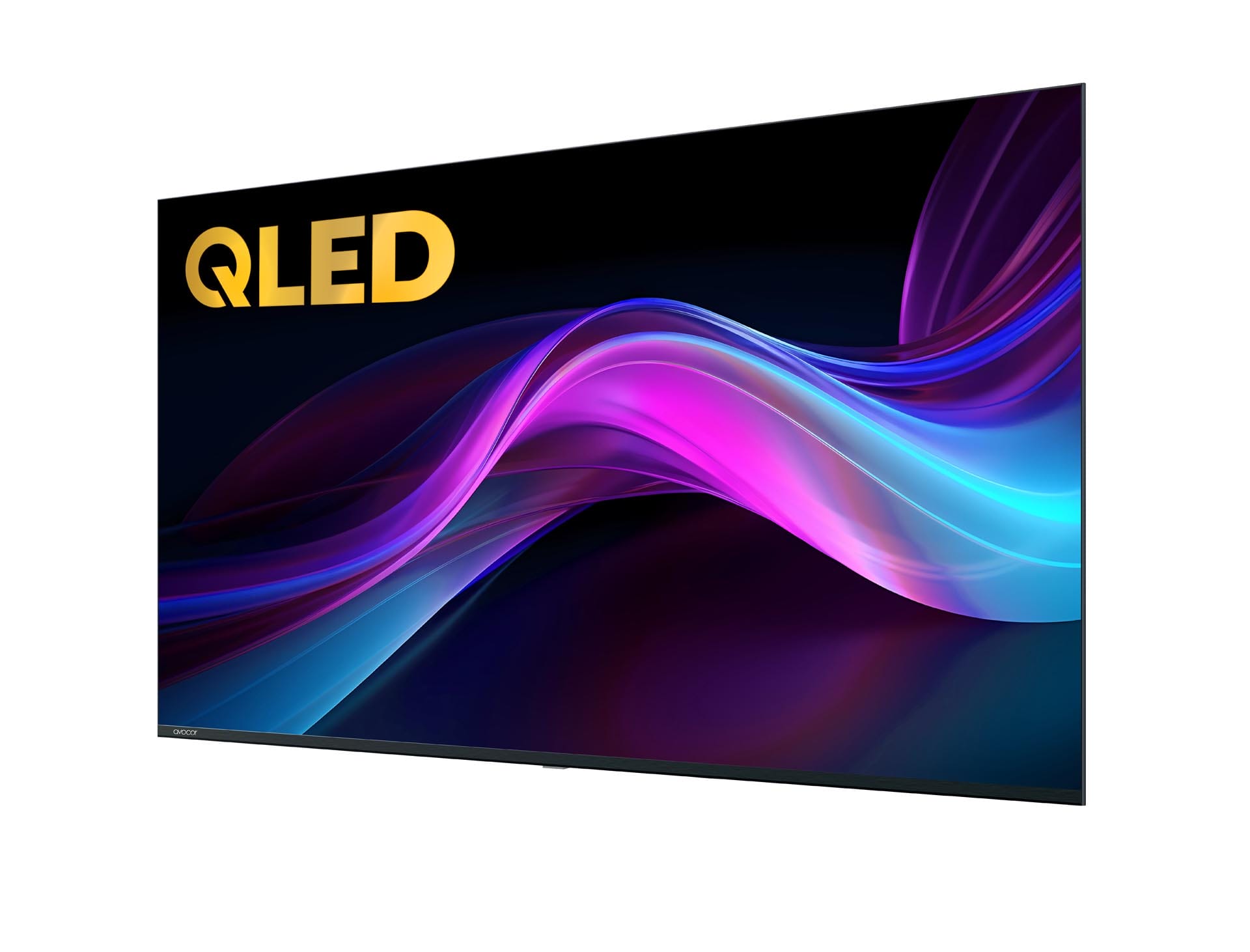

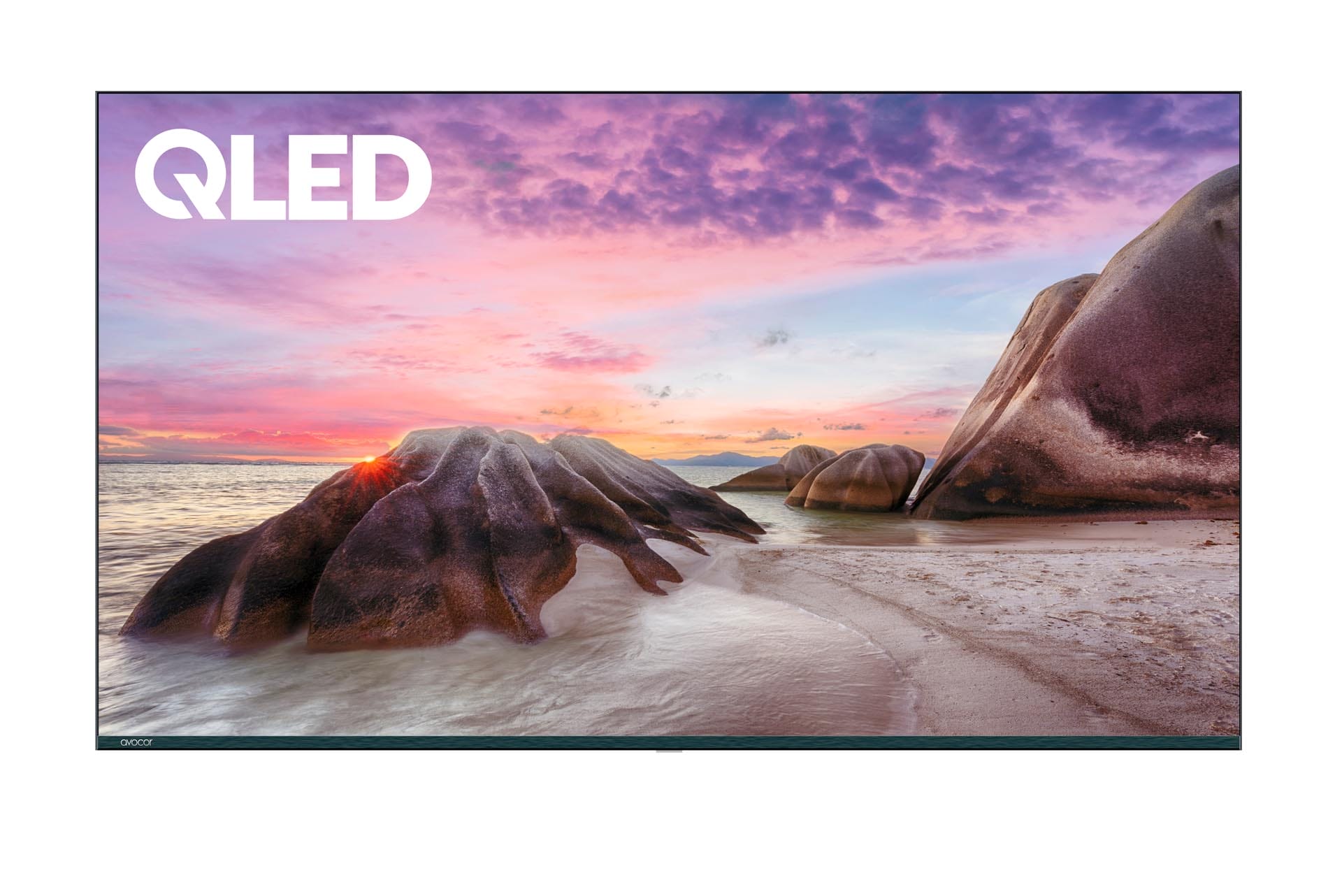

The Avocor K Series is designed for non-interactive environments in corporate, educational, and government sectors. Available in sizes ranging from 55 to 98 inches and featuring QLED technology, the K Series offers exceptional display quality for any space. Whether it's delivering presentations, enhancing digital signage, or supporting large-scale visual communication, these displays provide unmatched clarity, reliability, and ease of integration. The K Series delivers high-performance displays without interactivity, making it the ideal solution for organizations focused on impactful visual experiences.

Non-touch display

Streamlined communication with UcaaS integration for seamless content delivery

QLED Technology

450 nits of brightness and brilliant 4K resolution ensures vibrant and detailed visuals in any setting

Complete Range of Sizes

Available in sizes from 55" to 98", suitable for any space

Unify. Engage. Navigate. With the Avocor K Series

Organizations in education, government, and corporate sectors often face the challenge of communicating important information clearly and consistently across non-interactive spaces. The Avocor K Series offers a solution to this common pain point by providing stunning, high-definition displays that ensure your message is delivered with impact. Whether it’s simplifying communication in classrooms, enhancing transparency in government facilities, or boosting engagement in corporate meeting rooms, the K Series meets the need for reliable, high-quality visual displays.

From large lecture halls to busy lobbies, the Avocor K Series elevates the viewing experience, supporting your goals without the complexity of interactivity. With sizes ranging from 55 to 98 inches, it’s perfect for reinforcing critical information, delivering presentations, or displaying key data in a way that captures attention. Designed with energy efficiency in mind, the K Series helps meet sustainability goals while providing a dependable solution for non-interactive environments.

Avocor K Series
Avocor K Series
Avocor K Series
Quality and Reliability
Ease of Integration and Management
Innovative and Future-Ready Workspaces

Featuring 4K resolution, 450 nits brightness with QLED and HDR local dimming, and a 90% DCI-P3 color gamut, the K Series is built for organizations that refuse to compromise on the quality and visibility of their displayed content.

Equipped with wireless screen sharing via Montage, digital signage capabilities through Rise Vision, and comprehensive connectivity options, the K Series is ideal for businesses seeking seamless integration into their existing technology ecosystems, complemented by easy, centralized management.

The K Series meets the demands of forward-thinking organizations aiming to create innovative, technology-enabled work environments that foster engagement, collaboration, and communication.

Avocor K Series
Avocor K Series

Unifying spaces with seamless visual solutions

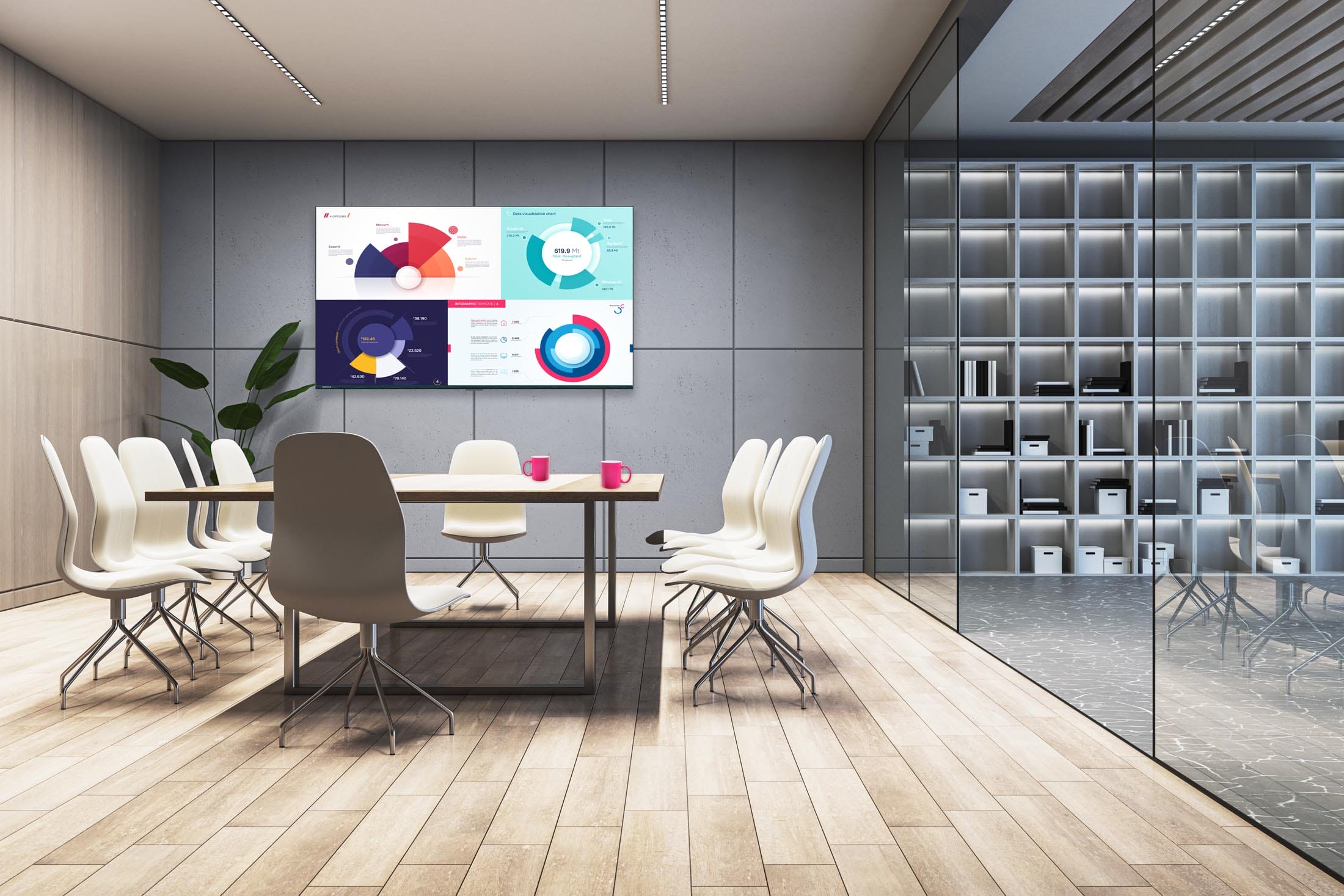

The Avocor K Series is engineered to meet the diverse visual communication needs of modern corporate environments. With a focus on versatility, superior visual quality, and ease of integration, the K Series offers a premium display solution for a variety of professional settings.

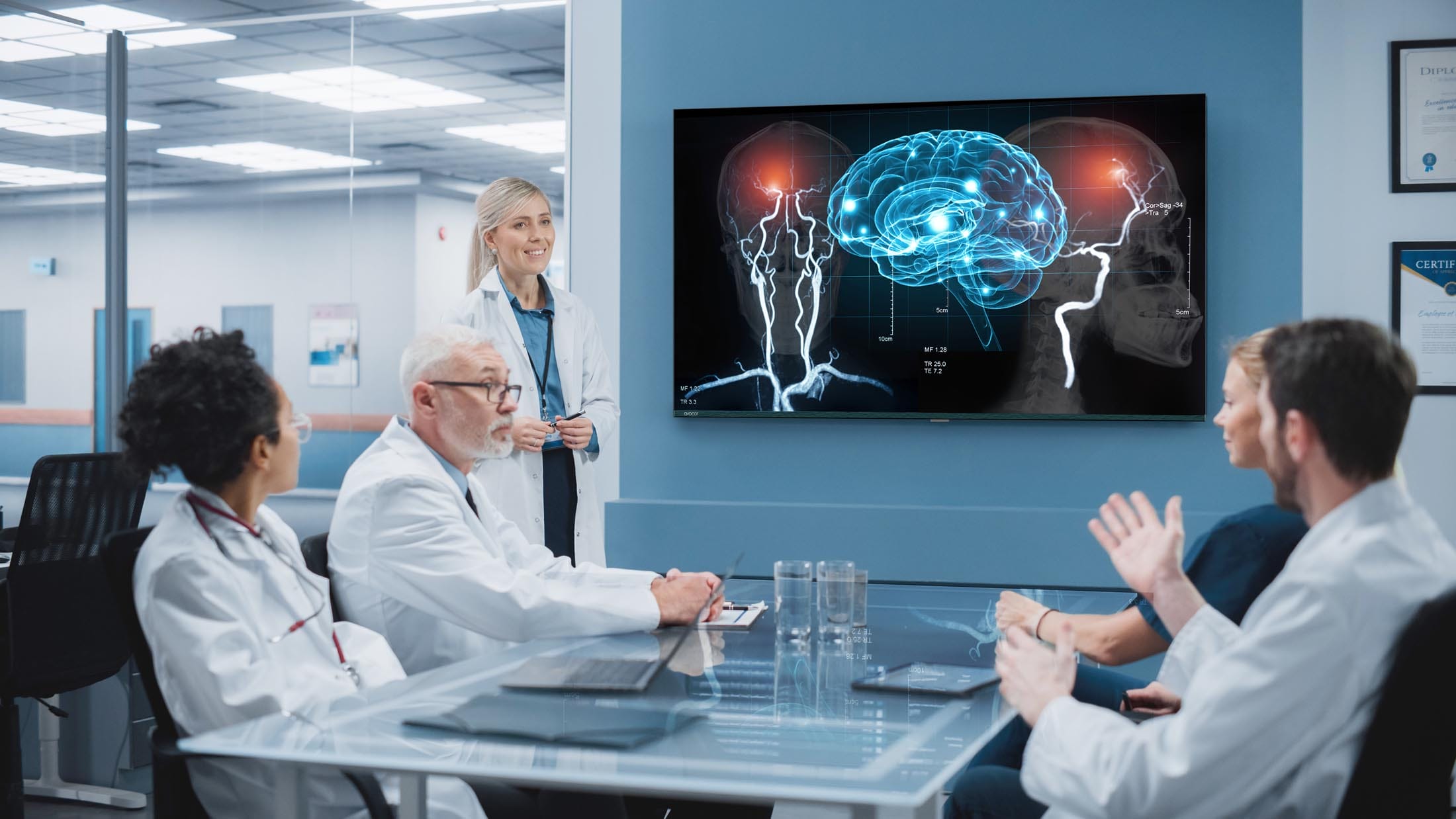

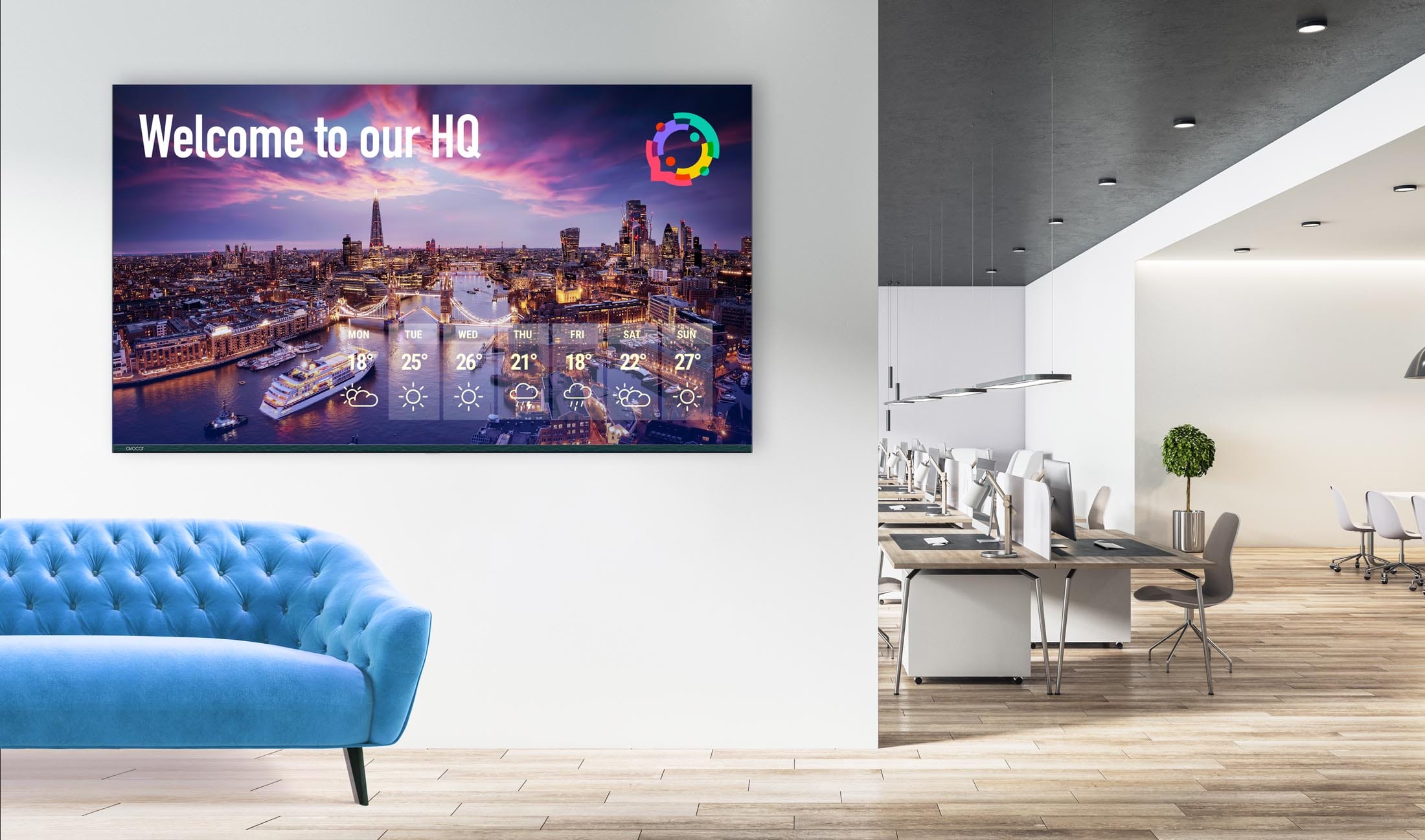

From businesses seeking to enhance their communication with high-definition displays for lobbies, meeting rooms, and common areas to Universities or training centers looking to provide students and educators with a superior visual tool for learning and presentations, the K Series delivers stunning content clarity, in all scenarios.

Display

Part Numbers: AVK-5510 | AVK-6510 | AVK-7510 | AVK-8510 | AVK-9810

Size Options: 55" | 65" | 75" | 85" | 98"

Backlight: Direct-lit QLED

Resolution: 4K

Aspect Ratio: 16:9

Connectivity

2 x HDMI

1 x Type C

1 x USB-A

1 x USB-B

Included Software

Montage: Wireless sharing for any device

Rise Vision: Customizable digital signage

UiQ: Touch enabled dynamic user interface

Display

Part Number
AVK-5510
AVK-5510
AVK-6510
AVK-6510
AVK-7510
AVK-7510
AVK-8510
AVK-8510
ACK-9810
ACK-9810
Size
AVK-5510
55"
AVK-6510
65"
AVK-7510
75"
AVK-8510
85"
AVK-9810
98"
Backlight
Direct-lit QLED
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60Hz
Response Time
≤ 7ms
Brightness
450 (cd/m2)
Contrast Ratio
1200:1
Viewing Angle
178° / 178°
Supported Colors
10 Bit 1.07 Billion Color with 90% DCI-P3
Operation Time
7 days x 16 hours
Display Orientation
Landscape

Touch System

Interface
Non-Touch
Glass
Anti-glare

CPU

CPU
A73x4
GPU
Mali-G52 MC1
RAM/ROM
4G / 32G
Android Version
Android 14

Connectivity

Side Inputs
2 x HDMI 2.1, 1 x Type-C (15W PD), 1 x USB-A 3.0, 1 x USB-B 2.0
Audio
1 x 3.5mm Line Out
Control
1 x RJ45 LAN (100M), 1 x RS-232 (DB9 male)
OPS Slot
No
WiFi
WiFi 5 2.4GHz / 5GHz

Audio

Built-in Speakers
AVK-5510
2 x 10W Bottom Front
AVK-6510
2 x 10W Bottom Front
AVK-7510
2 x 10W Bottom Front
AVK-8510
2 x 10W Bottom Front
AVK-9810
2 x 15W Bottom Front

Display & Remote Functions

Auto-Source Detection
Yes
Image Settings
Yes

Physical Specifications

Product Dimensions (L x W x H)
AVK-5510
1232.4 x 83.6 x 713.7mm (48.5 x 3.3 x 28")
AVK-6510
1451.4 x 83.9 x 835.7 mm (57.1 x 3.3 x 32.9")
AVK-7510
1673.4 x 87 x 964.5mm (65.8 x 3.4 x 37.9")
AVK-8510
1894 x 101 x 1097mm (74.5 x 3.9 x 43.1")
AVK-9810
2181.6 x 110.6 x 1246.7mm (85.9 x 4.3 x 49.1")
Bezel Dimensions
AVK-5510
4.5 x 4.5 x 4.5 x 20.6mm (0.18 x 0.18 x 0.18 x 0.81")
AVK-6510
5.3 x 5.3 x 5.3 x 19.3mm (0.21 x 0.21 x 0.21 x 0.76")
AVK-7510
4.6 x 4.6 x 4.6 x 19.3mm (0.18 x 0.18 x 0.18 x 0.76")
AVK-8510
3.5 x 3.5 x 3.5 x 20.4mm (0.13 x 0.13 x 0.13 x 0.80")
AVK-9810
3.5 x 3.5 x 3.5 x 19.4mm (0.13 x 0.13 x 0.13 x 0.76")
Shipping Dimensions (L x W x H)
AVK-5510
1350 x 152 x 837mm (53.1 x 5.9 x 32.9")
AVK-6510
1600 x 178 x 960mm (62.9 x 7.0 x 37.7")
AVK-7510
1840 x 230 x 1103mm (72.4 x 9.0 x 43.4")
AVK-8510
2050 x 230 x 1280mm (80.7 x 9.0 x 50.3")
AVK-9810
2390 x 280 x 1500mm (94.1 x 11 x 59.1")
Weight (Net)
AVK-5510
14.5KG (31.9lbs)
AVK-6510
20.1KG (44.3lbs)
AVK-7510
29.3KG (64.6lbs)
AVK-8510
38.6KG (85.1lbs)
AVK-9810
59KG (130.1lbs)
Weight (Gross)
AVK-5510
18.8KG (41.4lbs)
AVK-6510
26.6KG (58.6lbs)
AVK-7510
41.2KG (90.8lbs)
AVK-8510
52KG (114 lbs)
AVK-9810
86.5KG (190lbs)
Wall Mount (VESA)
AVK-5510
400 x 300mm Included
AVK-6510
400 x 300mm Included
AVK-7510
400 x 300mm Included
AVK-8510
500 x 200mm Included
AVK-9810
800 x 400mm
IPC Mount
None

Power

Power Consumption (SDR)
AVK-5510
125W
AVK-6510
160W
AVK-7510
200W
AVK-8510
235W
AVK-9810
300W
Power Consumption (HDR)
AVK-5510
160W
AVK-6510
205W
AVK-7510
255W
AVK-8510
305W
AVK-9810
390W
Max Power Consumption
AVK-5510
180W
AVK-6510
230W
AVK-7510
280W
AVK-8510
340W
AVK-9810
475W

Environmental

Operating Temperature
0 - 40°C, 10-90% RH non-condensing
Storage Temperature
-20 - 60°C, 10 - 90% RH non-condensing
Humidity
See above

What Comes In The Box

In The Box
1.5m power cord (region specific), 1 x Tabletop stand, Remote control w/batteries, Wall Mount Bracket*
Details are subject to change without notice. All other logos and trademarks acknowledged. E&OE. *Not included on the 98
