    Avocor E Series

    AVE-5540 | AVE-6540 | AVE-7540 | AVE-8640

    The E Series interactive displays utilize the very latest optimized touch technology and superior glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition.

    The ability to easily switch between using a pen, finger, and palm creates a fluid collaborative environment for users in real-time. The E Series introduces Avocor’s UiQ touch-enabled interface and Montage - wireless screen sharing from any device and instant white-boarding capabilities.



    Book a Demo

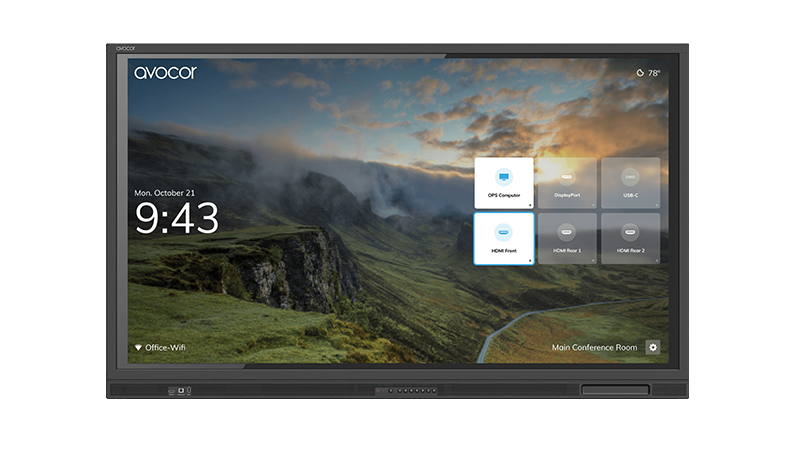

    Avocor UiQ

    Avocor UiQ is Avocor’s new Smart touch enabled dynamic user interface, with source preview, touch menu that allows for remote control free usage.

    Over-the-air (OTA) firmware UiQ

    Over-the-air (OTA) firmware update capability enables firmware updates to be more efficiently deployed rather than manually upgrading each device individually.

    Superior Glass Technology

    Superior glass technology provides a smooth and extremely accurate, low latency writing experience. Object recognition allows users to easily switch between pen, finger, and palm creating a fluid collaborative environment in real-time.

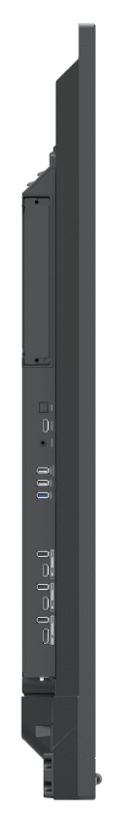

    ALZ Series Side

    No Parallax Digital Inking

    Zero parallax glass surface with anti-glare and anti-fingerprint coating for a crisp image with smooth, pixel perfect inking.

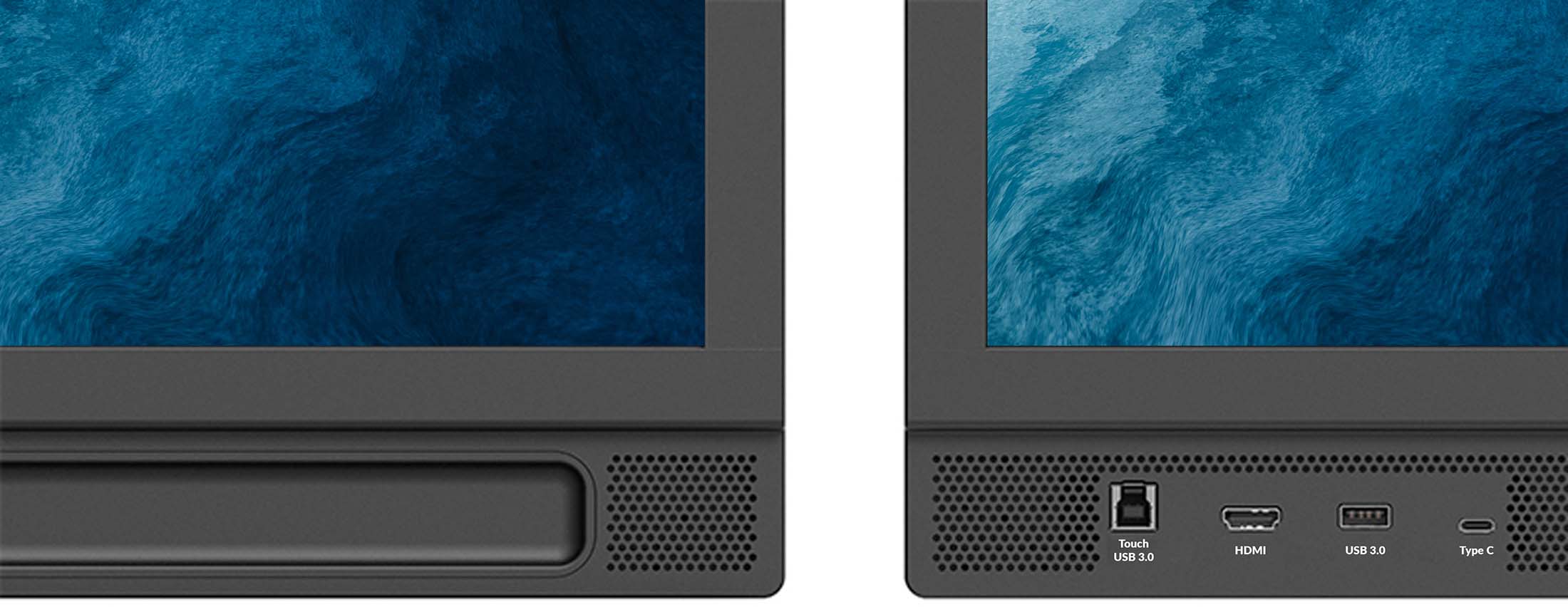

    4K Video with Enhanced HDMI

    Enhanced HDMI out supporting 4K video @60Hz and offering a range of connectivity options including front facing guest HDMI, USB touch connections and a USB hub connection for easy access to USB drive data. The 55” and 65" also offers a Type-C connectivity option.

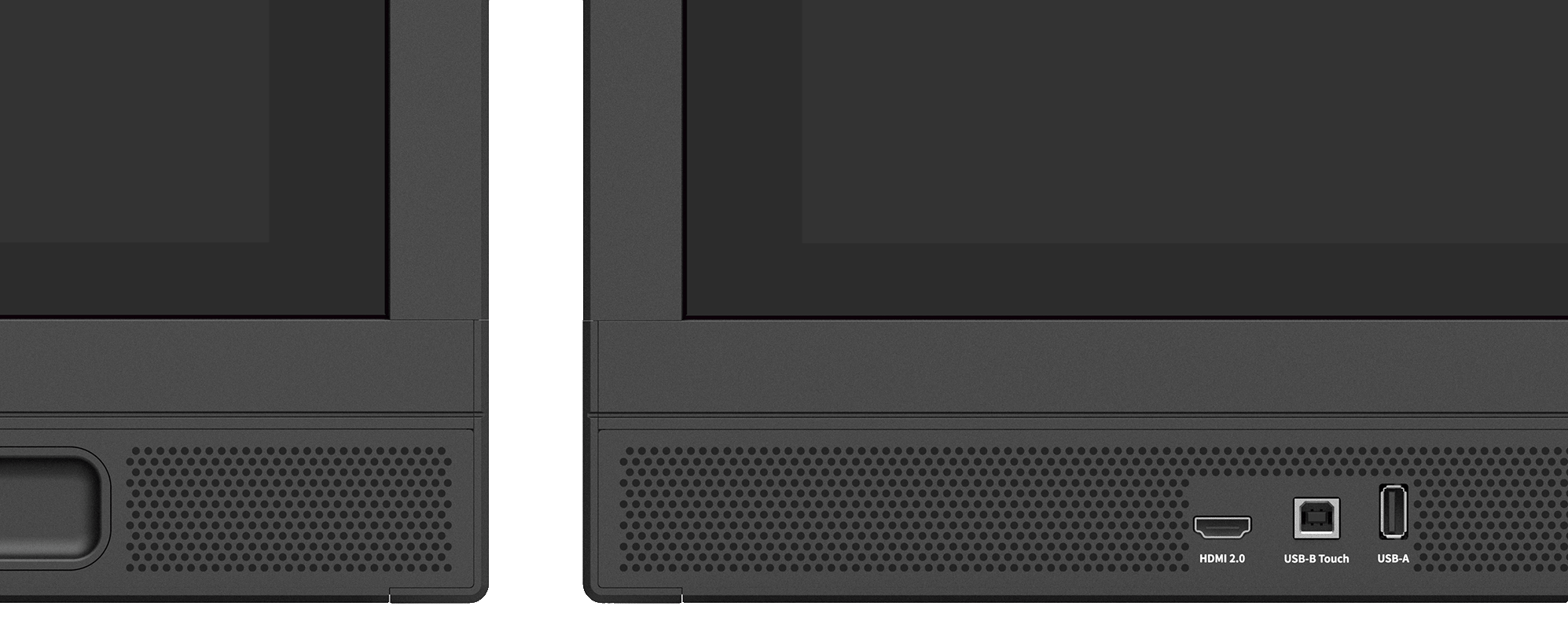

    Front Facing Sound Bar

    A high-quality, front-facing soundbar module is included, ensuring that the display provides 40w conference room audio delivering a crystal-clear audio experience.

    Avocor E Series Screen sizes

    AVE-5540 | AVE-6540 | AVE-7540 | AVE-8640
    55"
    65"
    75"
    86"
    Avocor E Series
    Avocor E Series INTERACTIVE TOUCH SCREEN

    delivering the ultimate experience for usability and collaboration.

    Ranging in four sizes, 55", 65”, 75” and 86”, the E Series incorporates cutting-edge touch technology that delivers up to 20 ultra-fast touch points, creating an environment that inspires collaboration. With no gap between the glass and actual display screen, users will enjoy a pixel-perfect touch experience with superior writing accuracy and pen performance. Optimized for Windows 10, the E Series includes edge-swipe functionality that gives a true tablet-like experience on a large format display screen.
    Anti-glare, anti-fingerprint glass delivers an exceptionally smooth, natural writing experience. Object recognition precisely recognizes the size of the object touching the interactive display, transitioning quickly between pen, finger and palm, enhancing the user experience. With the very latest in lightweight LED technology, the E series has an exceptionally slim bezel and 4K interactive touch screen resolution that is visually stunning and the 40W, forward-facing speakers produce a crisp, clear audio performance.

    Cleaning your interactive display

    Our recommended way to clean and care for your Avocor displays  - Austere Clean & Protect.
    Learn more
    Avocor E series overview
    Avocor E series overview

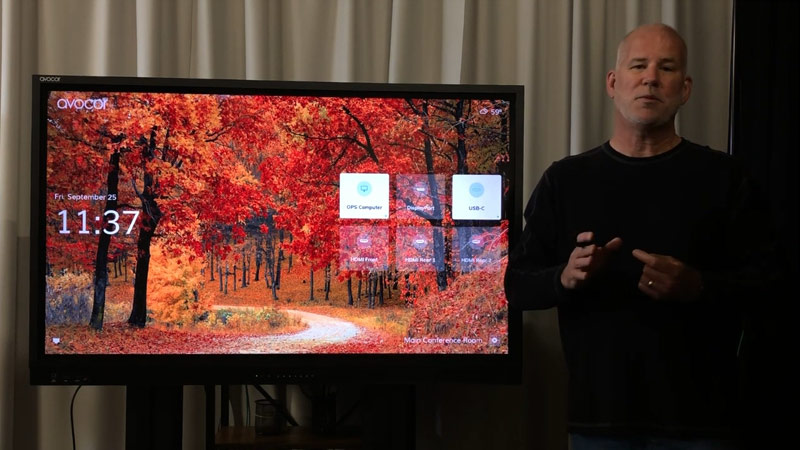

    Avocor E55 overview
    Avocor E55 overview

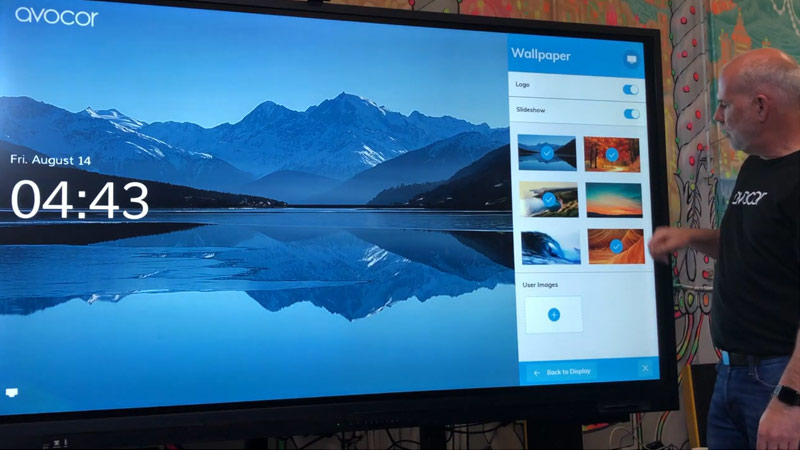

    Avocor UiQ user interface overview
    Avocor UiQ user interface overview

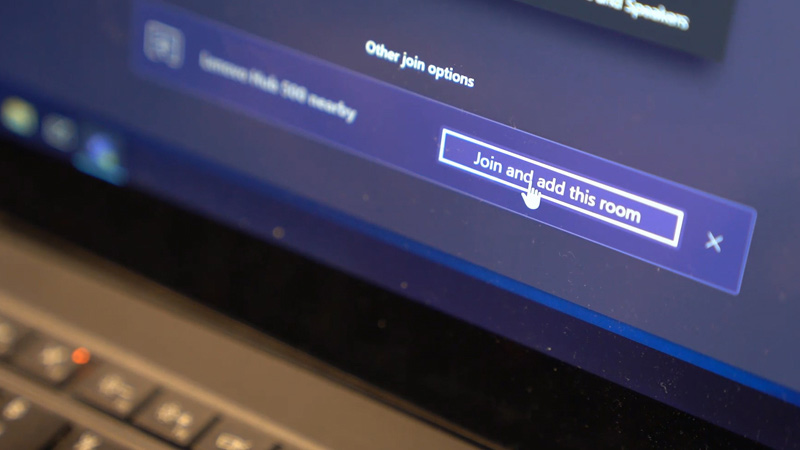

    Avocor with Microsoft Teams Room and Lenovo ThinkSmart Hub 500
    Avocor with Microsoft Teams Room and Lenovo ThinkSmart Hub 500
    Avocor with Zoom Room Touch and the Crestron Flex Kit
    Avocor with Zoom Room Touch and the Crestron Flex Kit
    Avocor with Zoom Room Touch and the Logitech MeetUp kit
    Avocor with Zoom Room Touch and the Logitech MeetUp kit

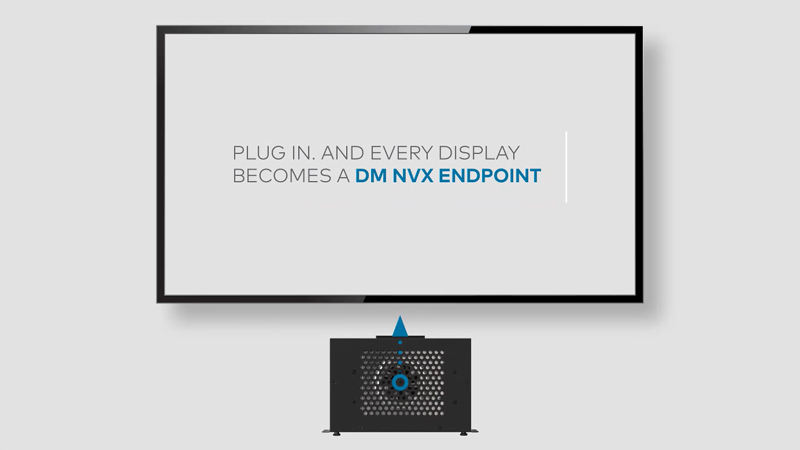

    Avocor with Crestron IoAV DM NVX D80
    Avocor with Crestron IoAV DM NVX D80

    Make technology barriers a thing of the past

    Avocor is helping organizations upgrade meeting spaces so that all participants have the best collaboration experience at the workplace.
    Learn more
    Avocor the Meeting Video
    Avocor the Meeting Video

    Resources

    Avocor E Series Datasheet
    Avocor Product Brochure
    Avocor Global Warranty
    Avocor E40 Series CAD files
    Avocor Product Support
    Avocor E Series Firmware
    Book a demo
    Get in touch

    Display

    Part Number
    AVE-5540
    AVE-5540
    AVE-6540
    AVE-6540
    AVE-7540
    AVE-7540
    AVE-8640
    AVE-8640
    Size
    AVE-5540
    55"
    AVE-6540
    65"
    AVE-7540
    75"
    AVE-8640
    86"
    Backlight
    Direct-lit LED
    Aspect Ratio
    16:9
    Resolution
    3840 x 2160 @ 60Hz
    Response Time
    8ms
    Brightness
    400 (cd/m2)
    Contrast Ratio
    4000:1
    Viewing Angle
    178° / 178°
    Supported Colors
    10 Bit 1.07 Billion Color
    Display Orientation
    Landscape

    Touch System

    Interface
    1 x Type-C, 2 x USB-B (1 x 2.0 +1 x 3.0)
    Touch
    Up to 20 Point Avocor Intelligent Touch - supports 1 x fine tip stylus
    Glass
    Zero parallax, bonded, anti-glare, anti-fingerprint
    Supported Operating System
    Windows 8 / 10; Mac OSX*; Linux*; Chrome

    Connectivity

    Guest Inputs
    1 x Type-C (45W PD), 1 x HDMI 2.0, 1 x USB-B Touch, 1 x USB-A 3.0 Hub
    Side IO
    2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-B Touch, 1 x USB-A 3.0 Hub, 1 x USB-A Service Port, 1 x HDMI Out (Support 4K @ 60Hz, 1920 x 1080 @ 60Hz)
    Audio
    1 x 3.5mm Audio Out, 1 x Optical (SPDIF)
    Control
    1 x RS-232, 1 x LAN Ethernet (RJ-45) In, 1 x LAN Ethernet (RJ-45) Out
    OPS
    Yes, 3840 x 2160 @ 60Hz

    Audio

    Built-in Speakers
    2 x 20W - forward facing

    Display & Remote Functions

    Auto-Source Detection
    Yes
    Source Preview
    Yes
    Blank
    Yes
    Freeze
    Yes

    Physical Specifications

    Product Dimensions (L x W x H)
    AVE-5540
    1286 x 78.4 x 802mm (50.63 x 3.09 x 31.57")
    AVE-6540
    1513 x 99.5 x 938mm (59.57 x 3.92 x 36.93")
    AVE-7540
    1735 x 91 x 1062mm (68.31 x 3.58 x 41.81")
    AVE-8640
    1981 x 91 x 1201mm (77.99 x 3.58 x 47.28")
    Shipping Dimension (L x W x H)
    AVE-5540
    1421 x 216 x 932mm (55.94 x 8.50 x 43.70")
    AVE-6540
    1649 x 216 x 1110mm (64.92 x 8.50 x 43.70")
    AVE-7540
    1886 x 227 x 1210mm (74.25 x 8.94 x 47.64")
    AVE-8640
    2130 x 250 x 1375mm (83.86 x 9.84 x 54.13")
    Weight (Net)
    AVE-5540
    28KG (61.73lbs)
    AVE-6540
    39KG (85.98lbs)
    AVE-7540
    52KG (114.64lbs)
    AVE-8640
    66KG (145.51lbs)
    Weight (Gross)
    AVE-5540
    41KG (90.39lbs)
    AVE-6540
    52KG (114.64lbs)
    AVE-7540
    64KG (141.10lbs)
    AVE-8640
    81KG (178.57lbs)
    Wall Mount (VESA)
    AVE-5540
    400 x 400mm
    AVE-6540
    600 x 400mm
    AVE-7540
    800 x 400mm
    AVE-8650
    800 x 400mm
    IPC Mount
    100 x 100mm
    Handles
    AVE-5540
    2
    AVE-6540
    2
    AVE-7540
    4
    AVE-8640
    4

    Power

    Power Supply
    AC100-240V (worldwide), 50 / 60Hz
    Max Power Consumption
    AVE-5540
    <220W
    AVE-6540
    <220W
    AVE-7540
    <340W
    AVE-8640
    <520W
    Standby
    ≤0.5W

    Environmental

    Operating Temperature
    0°C ~ 40°C
    Storage Temperature
    -20°C ~ 60°C
    Humidity
    20% ~ 85%

    What Comes In The Box

    In The Box
    1 x Remote control & batteries, 2 x 3mm fine-tip passive touch styluses, AC power cords (1 x UK, 1 x EU, 1 x US, 1 x AUS), 1 x USB-B 3.0 cable (3m | 118.1"), 1 x HDMI cable (3m | 118.1"), 1 x Type-C cable (1.8m | 70.9")

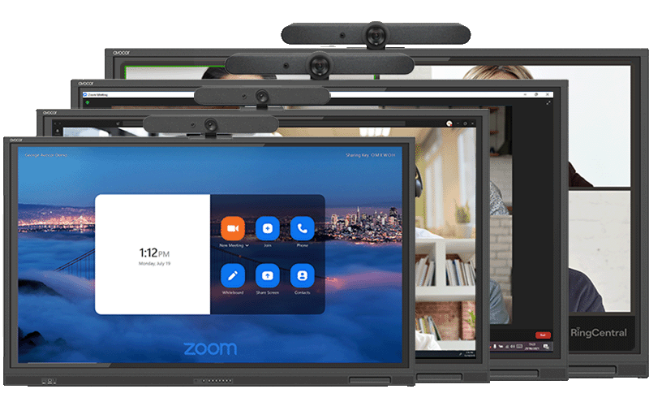

    Enhance your collaboration capabilities with Avocor CollabTouchTM

    Combine the power of Avocor’s E series interactive displays with the collaborative strength of highly popular Logitech meeting room solutions, such as the Rally Bar and Rally Bar Mini for the ultimate collaboration displays.

    Learn more
    Avocor Collabtouch
