avocor technologies


The world’s fastest growing display company

From agnostic solutions ideal for every room, space and budget to the world’s first Windows collaboration displays, Avocor has an interactive display ideal for your environments. Incredibly easy-to-use and seamless integration into enterprise, Avocor in every meeting space across a facility, campus or global office means the user experience is the same every time so collaboration can happen more often and much faster anywhere teams want to meet.

E-Series
e-10-800x500

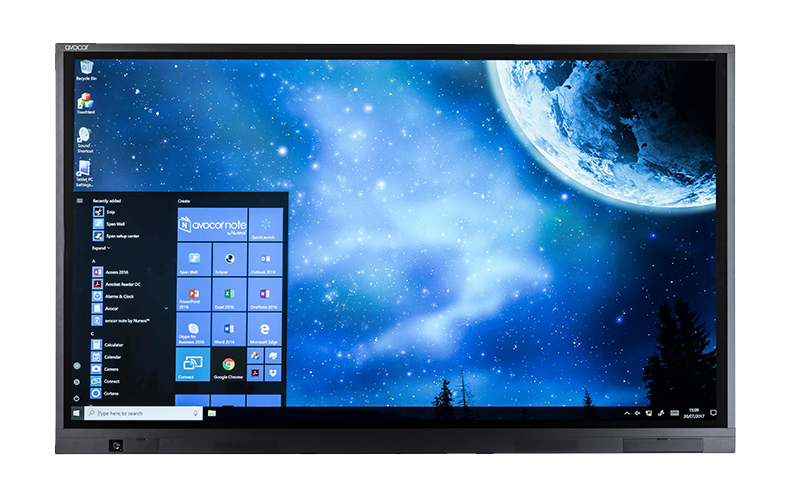

E series: Excellent responsiveness and exceptionally seamless integration, ideal for deployment in casual meeting spaces, with first-to-market 2mm optically bonded glass, delivering the most superior user experience on an infrared interactive display

F-Series Black
f-50-800x500

F series: A beautifully sleek, lightweight powerhouse with the precision and detail required in more sophisticated applications and rooms. When paired with a UC camera + Microsoft 365, the F50 series is an ideal Microsoft Surface Hub v1 alternative

logo-w-series-blue-100px
wcd-800x500

W series: Ideal for focus and small meeting rooms, corporate and home offices, both the Teams-certified 65" WCD and the 55" all-in-one offer an integrated, high-quality, conference camera with a microphone array and audio optimized for use with UC platforms, including Teams and Zoom.

ALZ_Logo_BLACK
ALZ

ALZ series: Avocor and Logitech have joined forces to bring you seven superior Zoom Rooms for Touch solutions, in two performance options, that offer uncompromised performance, are easy-to-use and are the ideal way to enable Zoom Rooms in meeting spaces.

E SERIES, F SERIES, W SERIES & ALZ SERIES COMPARISON
E series F series W series ALZ standard series ALZ premium series
Available sizes (inches)
  • 55", 65", 75", 86"
  • 65", 75", 86"
  • 55", 65"
  • 55", 65", 75", 86"
  • 65", 75", 86"
Resolution
  • 4K, 3840 x 2160 @ 60Hz
  • 4K, 3840 x 2160 @ 60Hz
  • 4K, 3840 x 2160 @ 60Hz
  • 4K, 3840 x 2160 @ 60Hz
  • 4K, 3840 x 2160 @ 60Hz
TOUCH SYSTEM
Interface
  • 2 x USB-B 3.0, 1x USB-C (55")
  • 5 x USB-B2.0-A (65-86")
  • 3 x USB-B 2.0, 1 x USB-B 3.0
  • 1 x USB Type C, 3 x USB-B 3.0
  • 2 x USB-B 3.0, 1x USB-C (55")
  • 2 x USB-B (65-86")
  • 3 x USB-B 2.0, 1 x USB-B 3.0
Touch
  • Up to 20-points of Avocor Intelligent Touch
  • Up to 20-points of Avocor InGlass™ Intelligent Touch
  • Up to 20-points of Avocor InGlass™ Intelligent Touch
  • Up to 20-points of Avocor Intelligent Touch
  • Up to 20-points of Avocor InGlass™ Intelligent Touch
Glass
  • 2mm optically bonded, anti-glare, anti-fingerprint glass
  • 2mm optically bonded, anti-glare, anti-fingerprint glass
  • 2mm optically bonded, anti-glare, anti-fingerprint glass
  • 2mm optically bonded, anti-glare, anti-fingerprint glass
  • 2mm optically bonded, anti-glare, anti-fingerprint glass
AUDIO
Built-in speakers
  • 2 x 15W - forward facing
  • 2 x 15W - forward facing
  • 4 x 10W - forward facing (55")
  • 2 x 30W - stereo full range (65")
  • Logitech MeetUp
  • Logitech MeetUp
Microphone array
  • No
  • 4 x microphones
  • 4 x far-field, beam-forming (55")
  • 4 x beam-forming, linear array, far-field, SSP, AEC, ANS, DRC, EQ (65")
  • Logitech MeetUp
  • Logitech MeetUp
CAMERA
Integrated conference camera
  • No
  • No
  • Yes - 6 element aspherical glass lens
  • Logitech MeetUp
  • Logitech MeetUp
CONNECTIVITY
Standard IO
  • 2x HDMI 2.0, 1x DisplayPort 1.2, 1x USB-B 3.0 touch, 1x USB-A 3.0, 1x USB Service Port, HDMI Out (4K@60Hz), 1x LAN Ethernet (RJ-45) out (55")
  • 2x HDMI 2.0, 1x DisplayPort 1.2a, 3x USB-A Touch, 1x USB Hub 2.0, 1x HDMI Out (65"-86")
  • 3x HDMI 2.0, 1x HDMI 2.0 for Dedicated Wireless Presentation Device, 1x DisplayPort 1.2a, 1x VGA, 2x USB-A Hub 3.0, 1x USB-A OPS 3.0, 1x HDMI Out, 1x USB Service Port
  • 1x Type-C (60W PD), 2x HDMI 2.0 + 2x USB-B 3.0 touch, 1x DisplayPort 1.4 + 1x USB-B 3.0 touch, 2x USB-A 3.0, 1x USB-A (service only), 1x IR input, 1x LAN Ethernet (RJ-45) in, 1x LAN Ethernet (RJ-45) out (55")
  • 1x Type C (DisplayPort Alt mode, 4K 60Hz, USB HID, PD power, ethernet), 1x DisplayPort 1.2, 2x HDMI 2.0, 3x USB-B 3.0 Touch, 1x USB-A 3.0, 1x USB-A Service Port (65")
  • 2x HDMI 2.0, 1x DisplayPort 1.2, 1x USB-B 3.0 touch, 1x USB-A 3.0, 1x USB Service Port, HDMI Out (4K@60Hz), 1x LAN Ethernet (RJ-45) out (55")
  • 2x HDMI 2.0, 1x DisplayPort 1.2, 1x VGA, 1x LAN In Ethernet (RJ-45), 2x Touch Input USB-B 2.0, IR input (65"-86")
  • 3x HDMI 2.0, 1x HDMI 2.0 for Dedicated Wireless Presentation Device, 1x DisplayPort 1.2a, 1x VGA, 2x USB-A Hub 3.0, 1x USB-A OPS 3.0, 1x HDMI Out, 1x USB Service Port
Guest IO
  • 1x HDMI 2.0, 1x USB-B Touch 3.0, 1x USB-A 3.0 Hub, 1x Type C (55")
  • 1 x HDMI 1.4, 1x USB-A Touch, 2x USB HUB 2.0 (65"-86")
  • 1 x HDMI 2.0, 1 x USB-B touch, 1 x USB-A 2.0 Hub, 1 x USB-A 2.0 OPS
  • No
  • 1x HDMI 2.0, 1x USB-B Touch 3.0, 1x USB-A 3.0 Hub, 1x Type C (55")
  • 1 x HDMI 2.0, 1 x USB-B touch, 1 x USB-A 2.0 Hub, 1 x USB-A 2.0 OPS
Audio
  • 1x 3.5mm audio out, 1x optical (SPDIF)
  • 1 x 3.5mm audio out, 1 x 3.5mm audio in, 1 x optical (SPDIF)
  • 1 x 3.5mm audio out, 1 x optical (SPDIF)
  • 1x 3.5mm audio out, 1x optical (SPDIF) (55")
  • 1 x 3.5mm audio out, 1 x 3.5mm audio in, 1 x optical (SPDIF) (65"-86")
  • 1 x 3.5mm audio out, 1 x 3.5mm audio in, 1 x optical (SPDIF)
Control
  • 1x RS232, 1x LAN Ethernet (RJ-45) in (55")
  • 1 x RS-232 (65"-86")
  • 1 x RS-232, 1 x LAN in ethernet (RJ-45)
  • 1x RS232 (55")
  • 1x RS232, 1x IR input (65")
  • 1x RS232, 1x LAN Ethernet (RJ-45) in (55")
  • 1 x RS-232 (65"-86")
  • 1 x RS-232, 1 x LAN in ethernet (RJ-45)
DISPLAY FUNCTIONS
Auto-source detection
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
Auto-power detection
  • No
  • No
  • Yes
  • No
  • No
IoT data reporting
  • No
  • No
  • Yes
  • No
  • No
WHATS IN THE BOX
Accessories
  • 1 x remote control & batteries, 2 x 3mm passive touch pen, AC power cords (1 x UK, 1 x EU, 1 x US, 1 x AUS), 1 x USB-B 3.0 cable (3m| 118.1 inches) 1 x HDMI cable (3m | 118.1 inches) 1 x Type C cable (1.5m) 1 x VESA adapter plate (55")
  • 1 x Remote control & batteries, 2 x 3mm passive touch pen, AC power cord, 2 x USB A-A cable (3m | 118.11 inches), 2 x HDMI cable (3m | 118.11 inches), 2 x USB-A-B adapter, 1 x Quick Start Guide, 1 x cleaning cloth (65"-86")
  • 1 x Remote control & batteries, 2 x 3mm fine-tip passive touch pen, 1 x UK, 1 x EU, 1 x US, 1 x AUS power cord, 1 x USB A-B cable (3m|118.1 inches), 1 x HDMI cable (3m|118.1 inches), 5 x cable clips, 1 x Quick Start Guide
  • 1 x Remote control & batteries, 2 x 2mm pen with eraser tip, Power cables (1 x US, 1 x UK, 1 x EU, 1 x AUS), 1 x USB-B 3.0 cable, 1 x HDMI cable, 1 x Type C cable, 1 x VESA 75 x 75 / 100 x 100 adapter plate, 1 x quick start guide
  • Zoom Room pre-configured Intel® i7 OPS, Custom Logitech MeetUp mount, Custom MeetUp power/data cable, Quick Start Guide documentation
  • Zoom Room pre-configured Intel® i7 OPS, Custom Logitech MeetUp mount, Custom MeetUp power/data cable, Quick Start Guide documentation
